DIESEL FORKLIFTS
TCM | FD35T3S

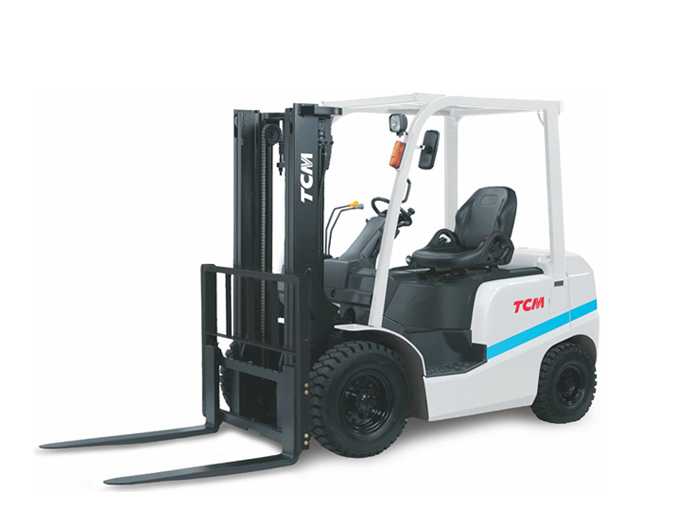

TCM 3.5 TON DIESEL FORKLIFT
| Model | FD35T3S |
| Load Capacity | 3.5 ton |
| Load Center | 500 mm |
| Lifting Height | Tripleks 4350mm |
| Free Lifting Height | 905m. |
| Sideshift | Included |
| Height, Mast Lowered | 2135mm. |
| Height, Mast Extended | 5610mm.(Support rest is included) |
| Fork Length | 1220mm |
| Machine Length | 2800mm. (Fork not included) |
| Machine Width | 1290mm |
| Turning Radius | 2470mm |
| Aisle Width with Pallet | 4385 mm |
| Engine Brand/Model | GCT(Global Component Technologies Corporation)/ QD32 |
| Engine Power | 44.0 kW / 2300 r.p.m. |
| Engine Volume / Cylinder | 3153 cc / 4 |
| Travel Speed (loaded/unloaded) | 18.5 / 19.0 km/h |
| Lifting Speed (loaded/unloaded) | 0.46 / 0.49 m/s |
| Lowering Speed (loaded/unloaded) | 0.42 / 0.45 m/s |
| Max.Tırmanma Kabiliyeti | %17 - %18 (loaded - unloaded) |
| Max.Çekiş Gücü(yüklü/yüksüz) | 18.1 /10.8 kN |
| Origin | JAPONYA |
Accecories & main features:
- Modern & stylish control panel with Led warning lights.
- High load support
- Minimum loss of power in the TCM gearbox, it is also possible to provide satisfactory efficiency with low torque engines.
- Interlock system is activated when the operator stands up from the seat so that travel, lift & carrying are locked. By this way possible risk of an accident is prevented.
- Tilt cylinders are placed under the base & the base area is expanded %45 & by this design it provides operator a comfortable space.
- With adjustable suspension seat comfortable ride is provided.
- With removable side covers, easy access to all engine parts during maintenance.
- Ergonomic use with the help of semi-circular steering wheel.
