Battery Forklifts
TCM | FB35-8S

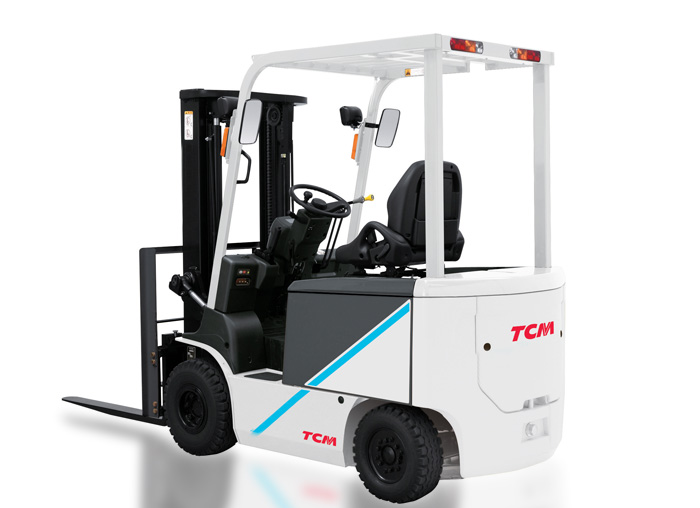

TCM 3.5 TON BATTERY FORKLIFT
| Model | FB35-8S |
| Load Capacity | 3.5 ton |
| Load Center | 500 mm. |
| Lifting Height | Tripleks 4800mm. |
| Free Lifting Height | 1000mm. |
| Sideshift | Included |
| Height, Mast Lowered | 2225mm. |
| Height, Mast Extended | 6060mm.(Support rest is included) |
| Fork Length | 1220mm |
| Machine Length | 2735mm. (Fork not included) |
| Machine Width | 1380mm. |
| Turning Radius | 2500mm |
| Aisle Width with Pallet | 4400mm (800 x 1200 mm pallet lengthwise) |
| Aisle Width with Pallet | 4200mm (1000 x 1200 mm pallet crosswise) |
| Motor Type | Electric / AC motor |
| Travel Engine Power | 11.9 kW |
| Lifting Engine Power | 14 kW |
| Battery Capacity | 630 Ah |
| Battery Voltage | 72 Volt |
| Travel Speed (loaded/unloaded) | 14/15 km/h |
| Lifting Speed (loaded/unloaded) | 0.24 / 0.41 m/s |
| Lowering Speed (loaded/unloaded) | 0.45 / 0.45 m/s |
| Max. Tırmanma Kabiliyeti | % 10.0 – 16.7 ( yüklü – yüksüz ) |
| Origin | JAPONYA |
Accecories & main features:
- Multifunctional digital control panel.
- All operation info can be seen on the screen such as; energy consumption, battery voltage, operation time, failure codes.
- Without using an extra tool, calibration troubleshooting can be done on the main screen.
- With the recycled electric brake system, battery recovery & service brake life are increased.
- High protection against water & dust.
- Improved MEIDEN brand Japanese, traveling & hydraulic motors & control units.
- Interlock system is activated when the operator stands up from the seat so that travel, lift & carrying are locked. By this way possible risk of an accident is prevented.
- Speed reduction system is available in back-sliding during use on sloping grounds.
- Automatic lock-down to prevent the risk of an accident & to reduce the battery consumption.
- Non marking white tires.
- Support rest is included.
