STACKING MACHINES
TCM | PSH200

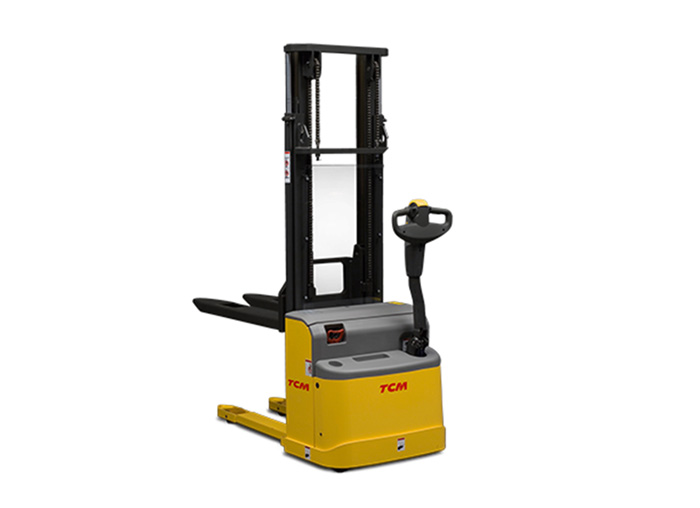

TCM 2 TON STACKING MACHINE
| Model | PSH200 |
| Load Capacity | 2.0 ton |
| Load Center | 600 mm. |
| Mast Height | Tripleks DTFV 4800mm. |
| Height, Mast Lowered | 2150 mm. |
| Height, Mast Extended | 5340 mm. |
| Fork Length | 1150 mm |
| Fork Width | 570 mm. |
| Machine Length | 2030 mm. (1150mm fork included) |
| Machine Width | 895 mm. |
| Turning Radius | 1868 mm. |
| Aisle Width with Pallet | 2746 mm (1000 x 1200 mm pallet crosswise) |
| Aisle Width with Pallet | 2643 mm (800 x 1200 mm pallet lengthwise) |
| Travel Motor Power | 1.3 kW AC |
| Lifting Motor Power | 4.0 kW |
| Battery Capacity | 375 Ah |
| Battery Voltage | 24 Volt |
| Travel Speed (loaded/unloaded) | 5.5/5.9 km/h |
| Lifting Speed (loaded/unloaded) | 0.13 / 0.20 m/s |
| Lowering Speed (loaded/unloaded) | 0.37 / 0.25 m/s |
| Origin | İSVEÇ |
Accecories & main features:
- Works with PIN code
- Ergonomic joystick includes hydraulic & traveling controlling buttons
- Provides maneuvering in vertical position
- Always four point contact wheel system provides optimum stabilization, performance & durability
- Tandem fork wheels
- Vul-kollan type wheels.
- Side changing battery comes as standard.
